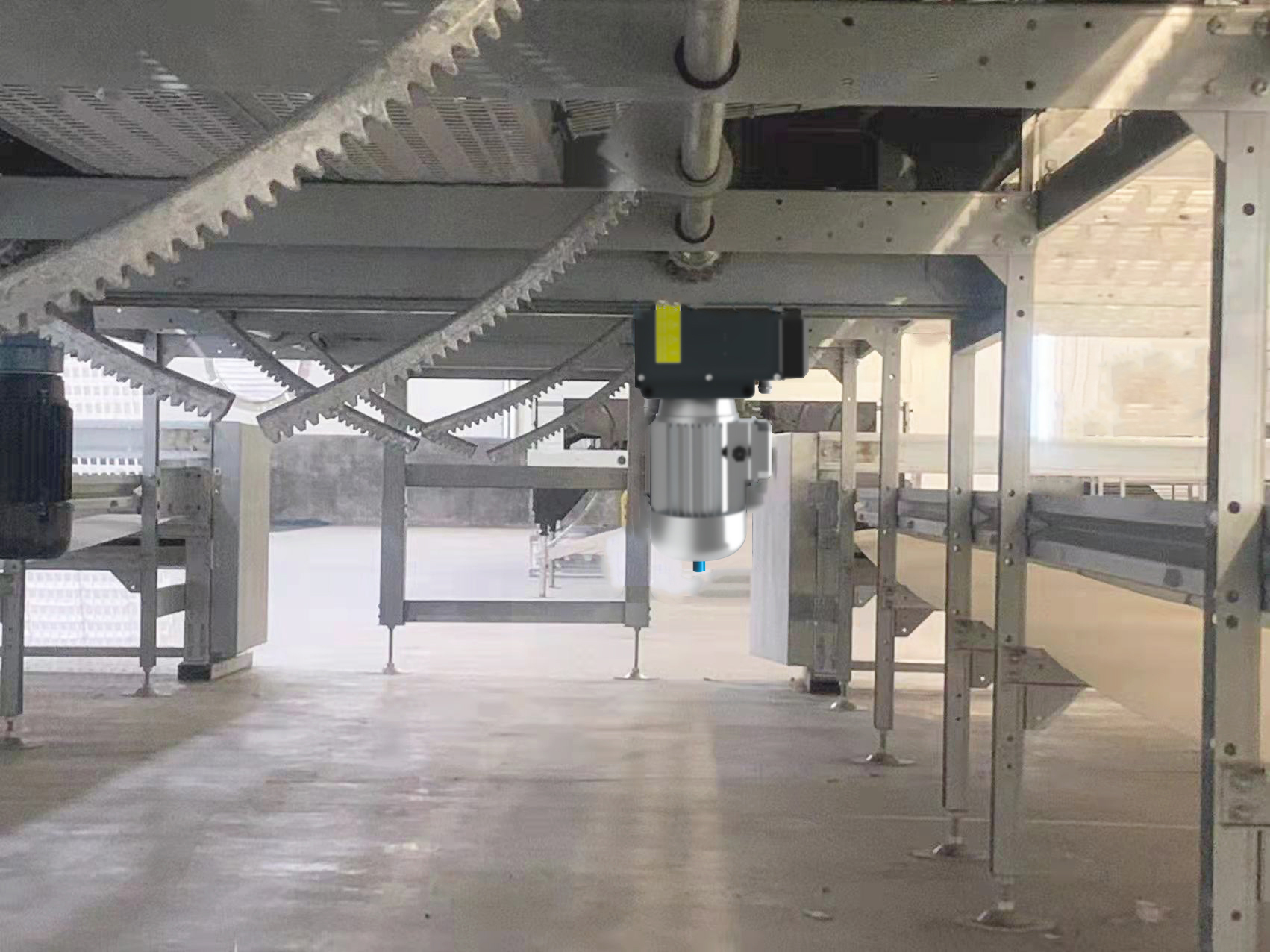

Intensive livestock requires high quality nest. In this case, the functioning of these nests is essential as well. We have the expertise to make this possible and we have reliable solutions to expel the chickens from the nest by moving the nest floors or back walls. We do this by using the rack and pinion system and a central drive tube or by winding a cable on a tube, all in combination with our motor gearbox series. These solutions have already proven themselves in practice many times.
Our motor gearbox is suitable for poultry nest expelling, with rack and pinion ( or cable driven system) for poultry caging system
1 Strong self-braking capability
2 build in limit switch securing accurate of the ventilation
3 the built-in potentiometer ensures precise positioning feedback
4 thermal protection of motor prevents motor from work overloading
Reliable performance, precise and accuracy, long life service, friendly use and easy to install, professional for livestock harsh environment.
| Model | Voltage | Power | Current | RPM | Torque | Weight |
| GMA550-D-600-2.6 | AC380V | 550W | 1.6A | 2.6r/min | 600N·m | 26Kg |
| GMA750-D-800-2.6 | AC380V | 750W | 2.0A | 2.6r/min | 800N·m | 28Kg |
| GMA1100-D-1200-2.6 | AC380V | 1100W | 2.8A | 2.6r/min | 1200N·m | 30Kg |
